TR120RD 20A Commercial Grade Single Tamper-Resistant Receptacle
Features
Technical Parameters
| Part Number |
TR120RD |
| Amperage |
20 A |
| Voltage |
125 VAC |
| Grade |
Commercial Grade
|
| Self-grounding |
— |
| Type |
Single Receptacle |
| Finish |
Glossy |
| Termination |
Side Wired |
| Face Material |
Polycarbonate |
| Strap Material |
Steel |
| NEMA |
5-20 R |
| Certification |
UL/CUL Listed |
| Color |
White,Ivory, Light almond, Gray, Black, Brown |
| Environmental |
Flammability UL94, V2 Rating |
| Operating Temperature |
-40°C (without impact) to 75°C |
| Warranty |
2 years |
Advantage
- Set up in 2003, with almost 20 years experience in USA Wiring Devices & Lighting Controls, we are capable of developing new items in a short time.
- Work as a partner with World & USA TOP 500 Companies and offer our customers complete product lines by both OEM and ODM.
- Implement PPAP System including MCP, PFMEA, Flow Diagram to well control the product quality.
- Meet both 3rd party and customers’ Factory Audit including THD, Wal-mart, Costco, GE, Schneider, etc.
- Highly automated production lines which contribute cost saving and assure better lead time.
- Advanced capacity which offers fourty eight 40HQ per month is leading the industry in China.
- All products UL/ETL approved.

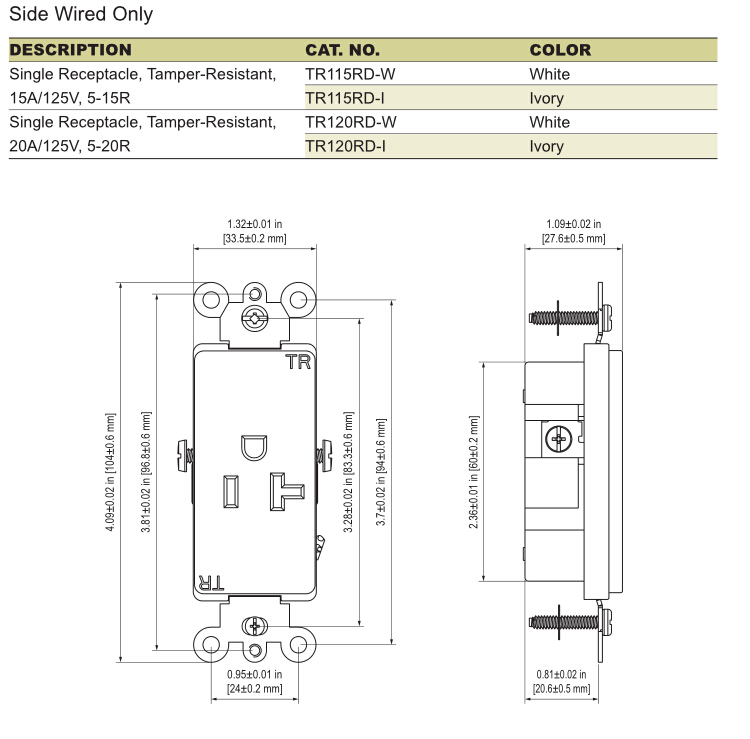

Dimension
TESTING & CODE COMPLIANCE
- UL/CUL Listed
- ISO9001 Registered
Manufacturing Facility
MATERIAL CHARACTERISTICS
- Environmental:
Flammability UL94, V2 Rating
